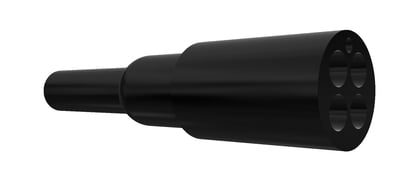

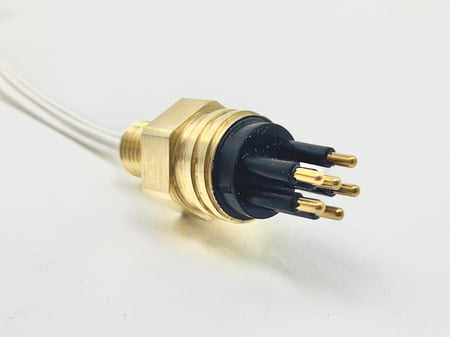

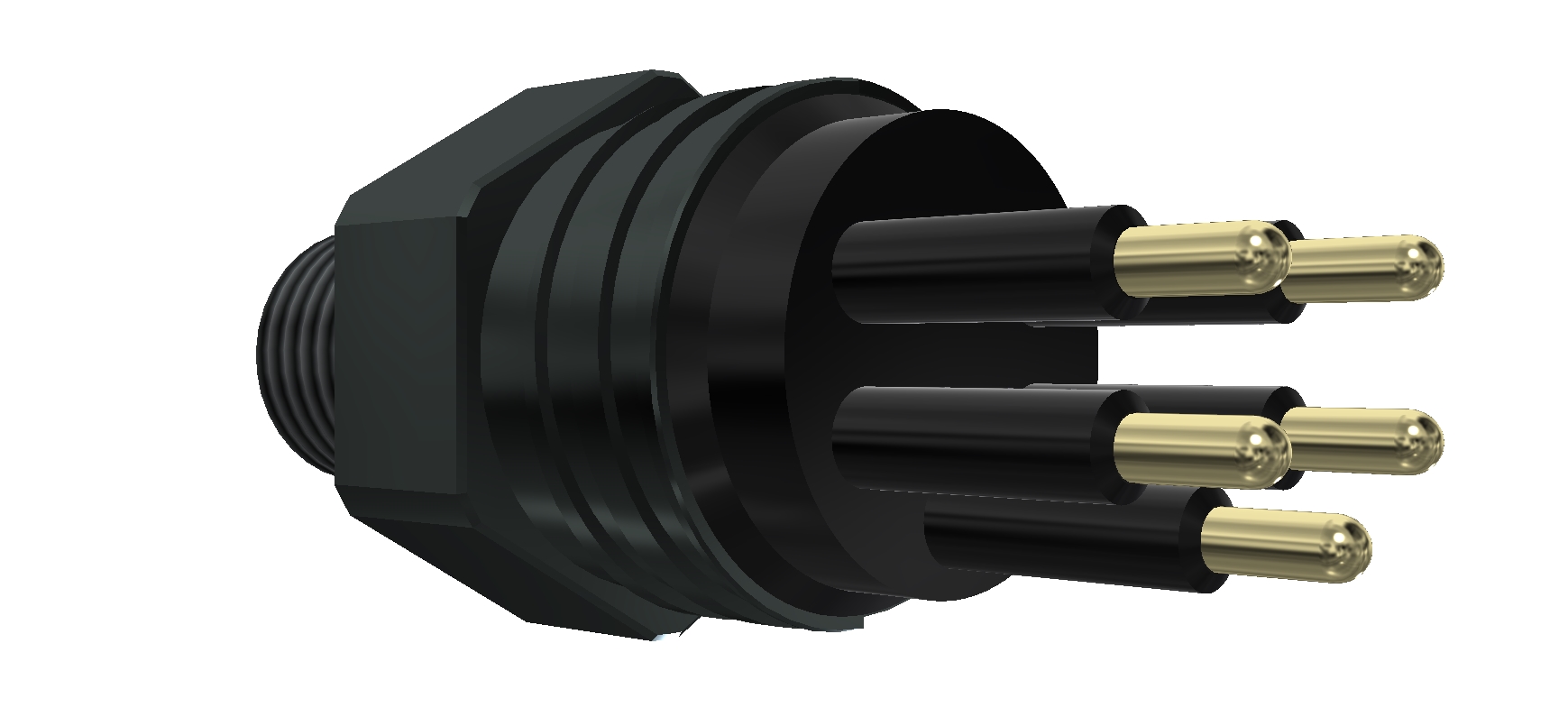

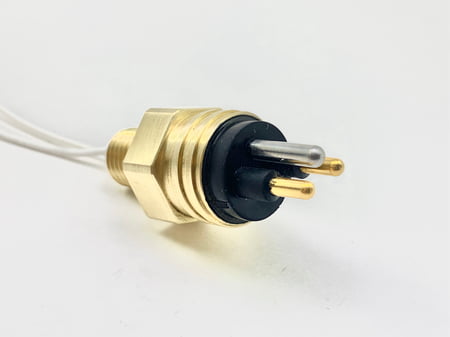

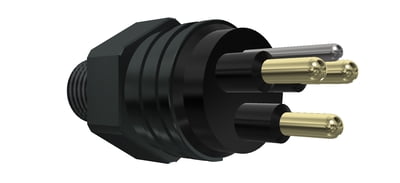

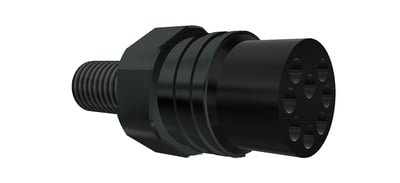

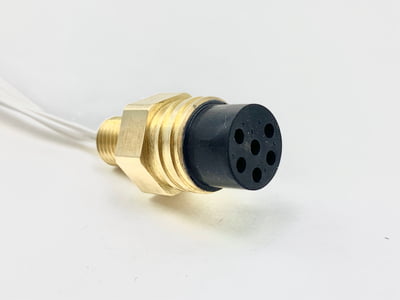

Micro Wet-Tech Connectors
Leap Underwater Technologies’ (LUT) Micro Wet-Tech Connector series are engineered to withstand the rigorous demands of the harsh ocean environment. Available in a wide range of contact configurations, the lightweight, durable design allows for repeated mating cycles, extreme ocean depth and varying temperatures. Our Micro Wet-Tech Series Connectors are compatible with other manufacturers’ products within in the subsea industry and can be customized to your specific project needs.
Key Features
- Wet mateable
- Radius pin design resists corrosion and reduces mating forces/wear
- Individual pin-to-socket contacts contain premium molded o-ring seals for enhanced waterproof sealing capability
- Compatible with other manufactures’ product lines
- Inline and bulkhead options available
- High-grade neoprene, polyurethane, metal shell and custom materials available
- High ocean depth rating
Custom Options Include

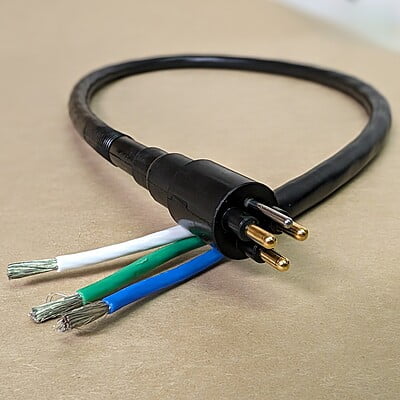

- Custom cable assemblies available (direct molding, splice molds, etc.)
- Custom cable, wire leads and bulkhead thread lengths available
- Various connector body materials available
- Certified pressure testing to specific ocean depths
Applications
- Offshore oil and gas, renewable energy and subsea systems
- Defense systems and equipment
- Oceanographic systems, equipment and instrumentation solutions
- Remotely Operated Vehicle (ROV) and Remotely Operated Towed Vehicle (ROTV) systems
- Underwater camera, video and lighting systems
- Ocean bottom seismic systems
- Diving systems and equipment
Micro Wet-Tech Connector Specifications
Item | Value | Unit of Measure |
---|---|---|
Contact | 2,3.4.5.6.8 | Each |
Pressure Rating | Up to 10,000 | PSI |
Voltage Rating (2,3,4) | up to 600 | V AC/DC |
Voltage Rating (5,6,8) | up to 300 | V AC/DC |
Amperage | 20/connector | A |
Operating Temperature | 20-140 | °F |
Insulation Resistance | >200 | MΩ @ 1,000 VDC |
Contact Continuity | <0.01 | Ω |
PURCHASE ONLINE
For custom assemblies and volume discounts, please contact SALES@LEAPUNDERWATER.COM for a quote.
(Lead time is 2-4wks for non-stock items)

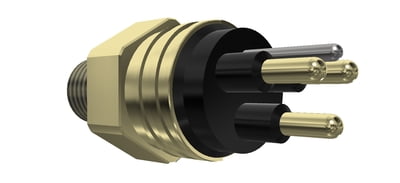

MICRO WET-TECH 2-WAY CONNECTORS
2-WAY

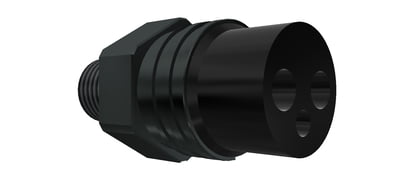

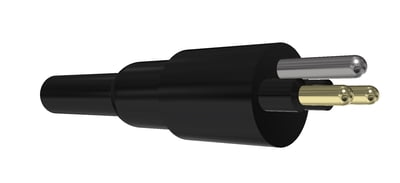

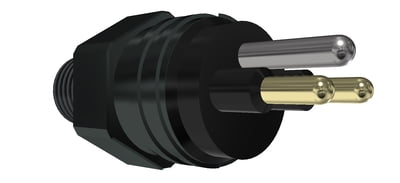

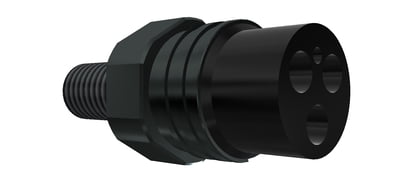

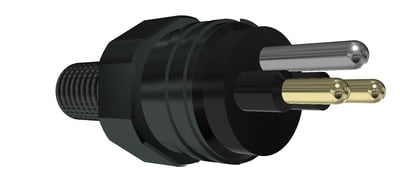

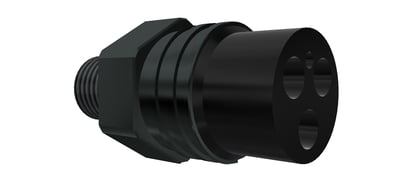

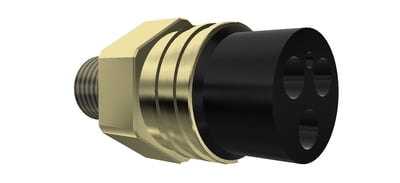

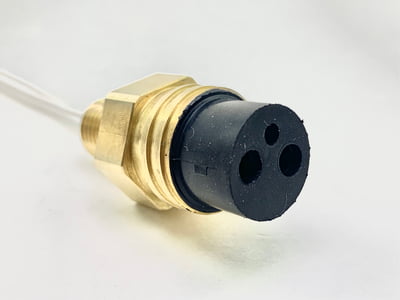

MICRO WET-TECH 3-WAY CONNECTORS
3-WAY

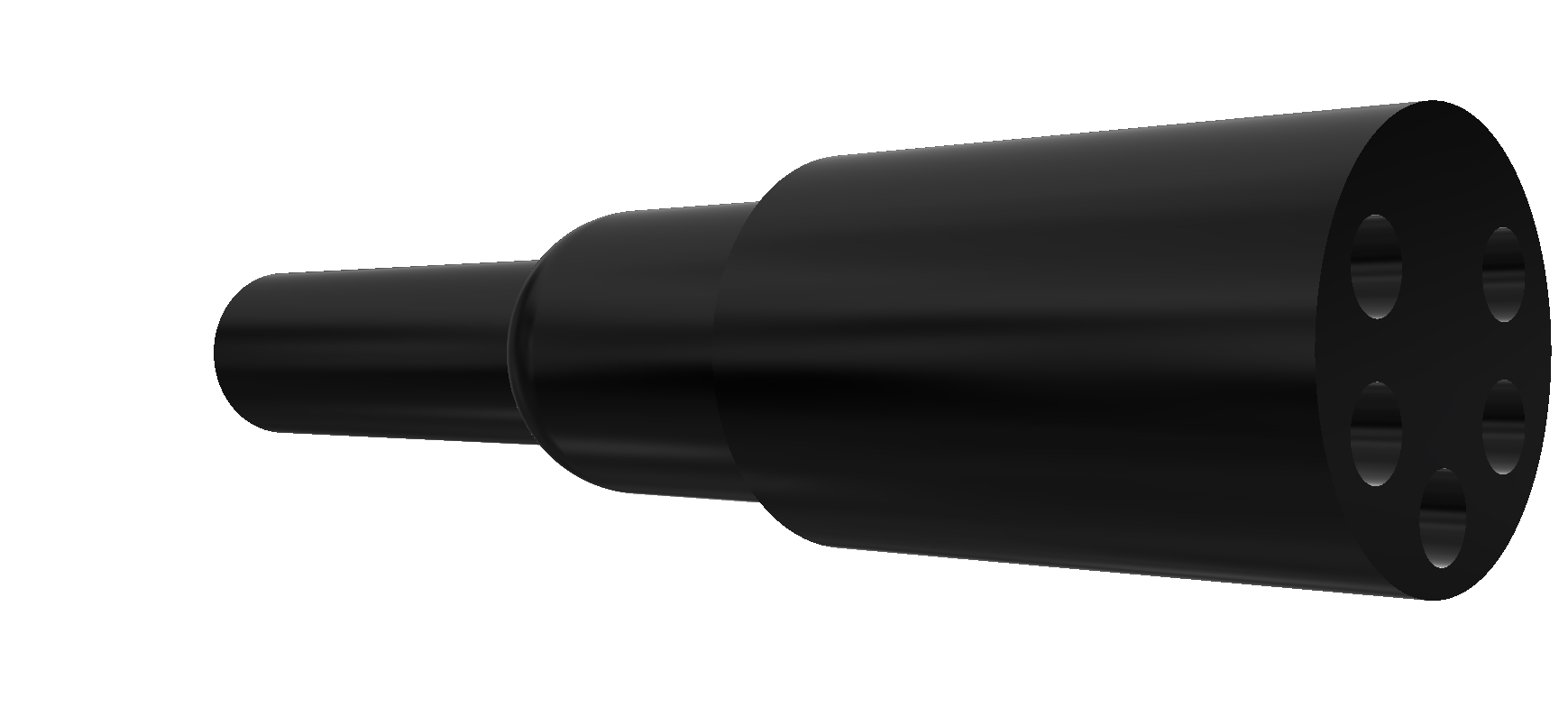

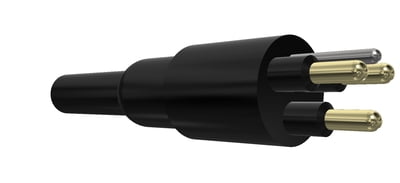

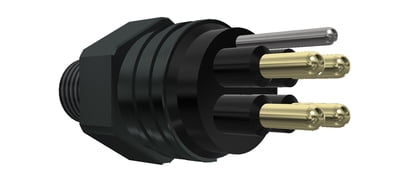

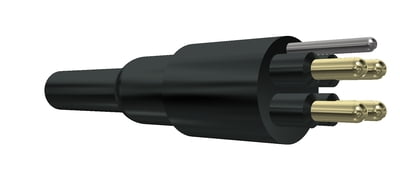

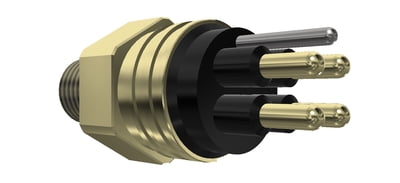

MICRO WET-TECH 4-WAY CONNECTORS
Micro Wet-Tech 4-Way

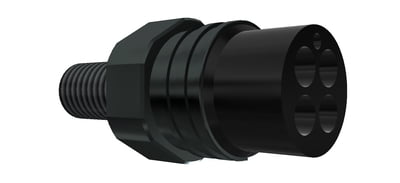

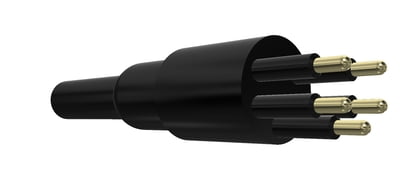

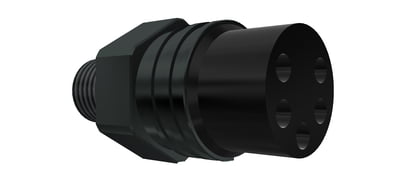

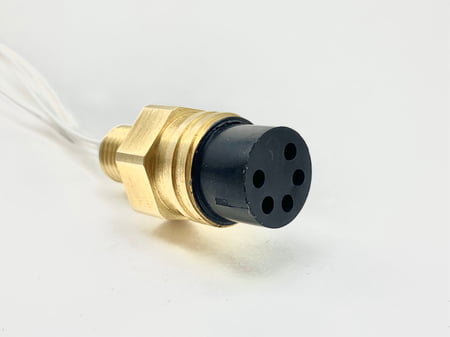

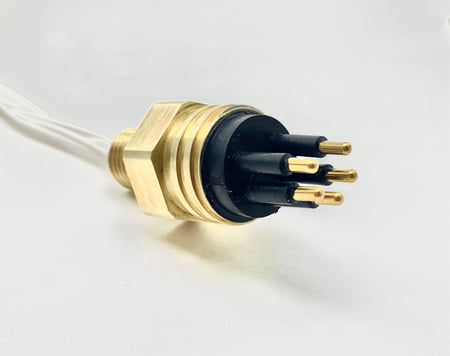

MICRO WET-TECH 5-WAY CONNECTORS
Micro Wet-Tech 5-Way

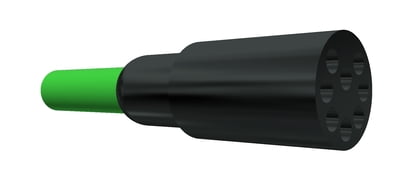

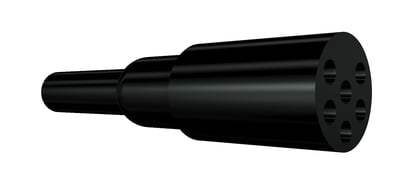

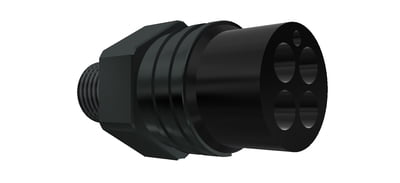

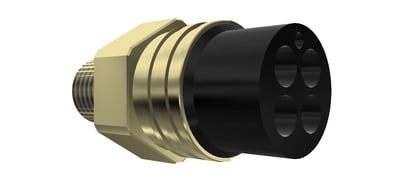

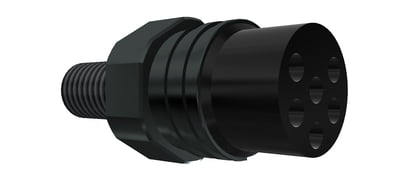

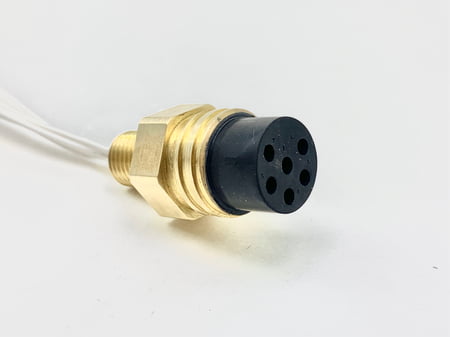

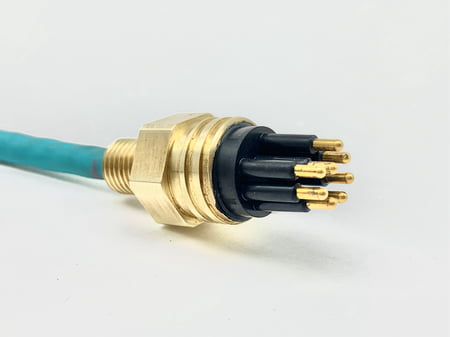

MICRO WET-TECH 6-WAY CONNECTORS
Micro Wet-Tech 6-Way

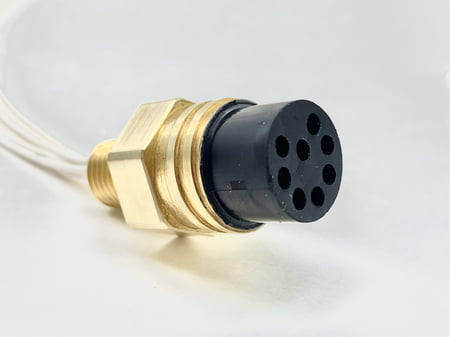

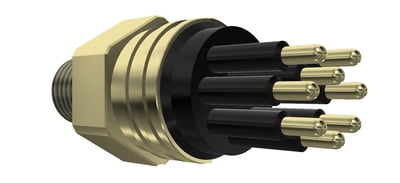

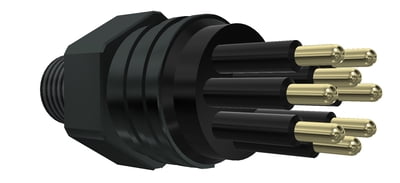

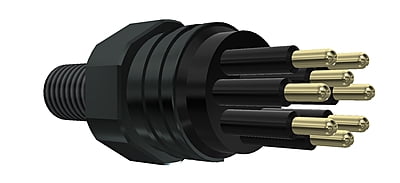

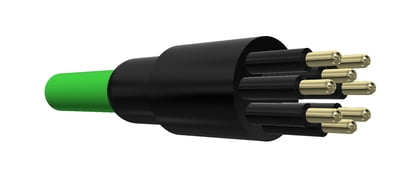

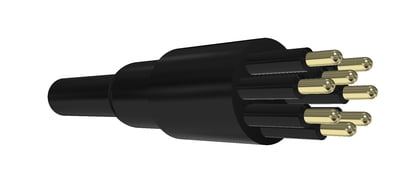

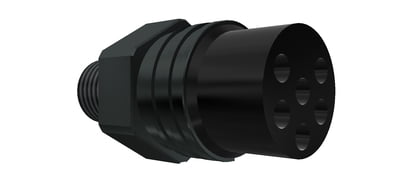

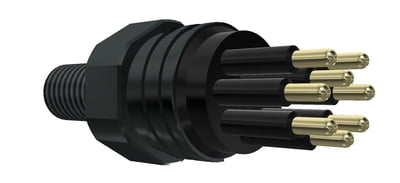

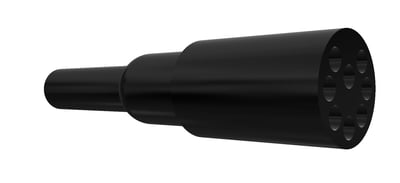

MICRO WET-TECH 8-WAY CONNECTORS
Micro Wet-Tech 8-Way

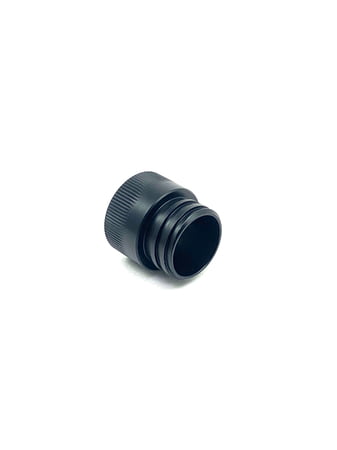

MICRO WET-TECH LOCKING SLEEVES
Micro Wet-Tech Locking Sleeves
MICRO WET-TECH METRIC (M10) THREADED BULKHEADS
Micro Wet-Tech Metric Bulkheads

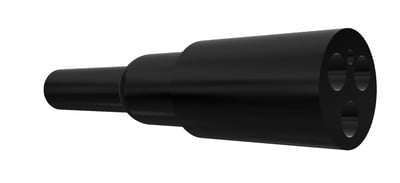

MICRO WET-TECH DUMMY PLUGS
